G-Mix™ 200

SKU:

124008

2899.99

  • 200W OSRAM® white LED light engine
  • 9 dichroic color filters + open
  • Smooth CMY color mixing system
  • Rotating gobo wheel: 7 rotating, indexable and replaceable slot-n-lock glass gobos + open
  • Static gobo wheel: 7 metal gobos + open
  • Linear motorized zoom (5°- 42°)
  • 3/8-facet bidirectional rotating prism
  • Motorized linear iris and frost
  • Linear electronic focus + auto focus
  • Strobe effect with variable speed (max.15 flashes/sec.)
  • Smooth dimmer from 0 - 100%
  • 25/30-channel standard & extended DMX modes
  • 200W OSRAM® white LED light engine
  • 9 dichroic color filters + open
  • Smooth CMY color mixing system
  • Rotating gobo wheel: 7 rotating, indexable and replaceable slot-n-lock glass gobos + open
  • Static gobo wheel: 7 metal gobos + open
  • Linear motorized zoom (5°- 42°)
  • 3/8-facet bidirectional rotating prism
  • Motorized linear iris and frost
  • Linear electronic focus + auto focus
  • Strobe effect with variable speed (max.15 flashes/sec.)
  • Smooth dimmer from 0 - 100%
  • 25/30-channel standard & extended DMX modes

Options

No items found.

Ultra High Output

Make your shows bigger and better with
G-Mix™ 200 moving spot fixtures

2 Year - Extendable Warranty
2 Year - Extendable Warranty

Tech Specs

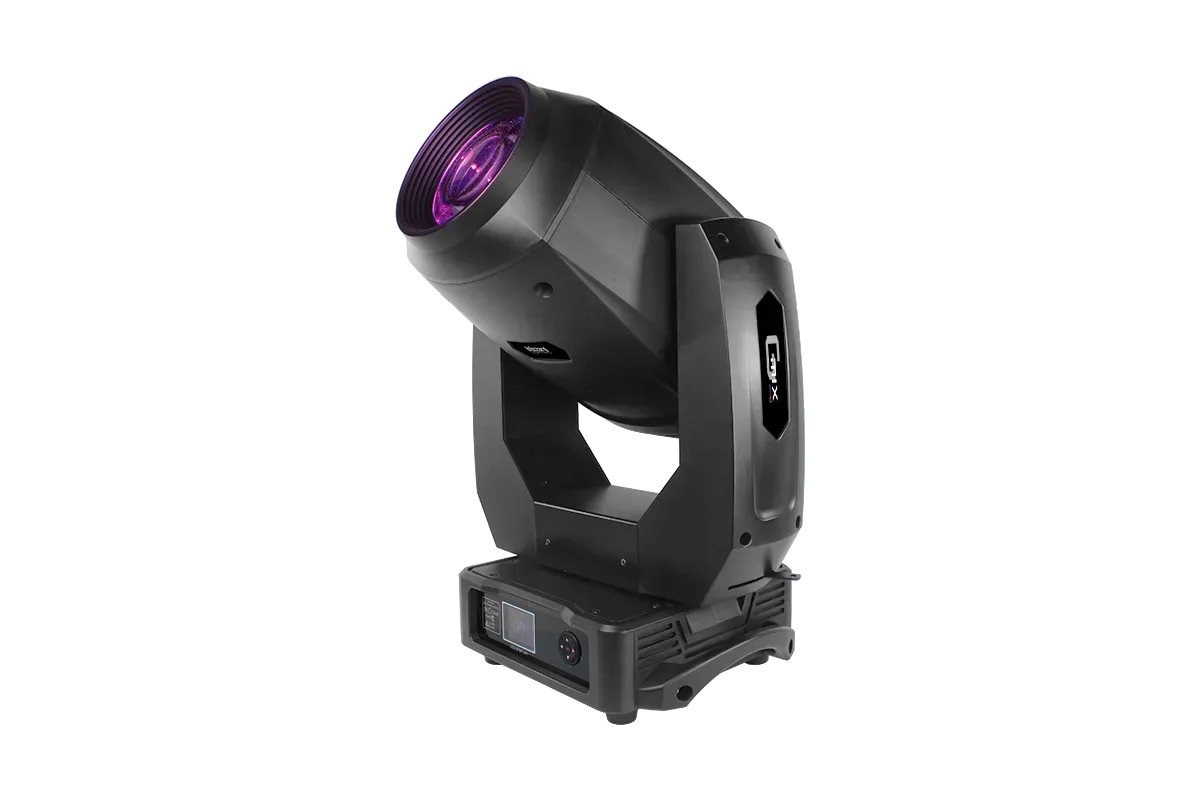

The Immortal Moving Head

Powered by a 200W OSRAM® white LED engine with an extra punchy beam, the G-Mix™ 200 is a feature packed spot moving head that combines an exceptionally sharp white beam with the rich color transitions of CMY color mixing. With 20,000+ hours of operation life, no relamping will be needed for the life of the fixture, making it an LD's immortal fixture dream.

CMY Color Mixing System

Smooth color transitions and vibrant fixed colors can be applied from its unique system of three color wheels, plus its rotating or static gobos can be added for projections and mid-air effects. Its smooth linear zoom can go from 42° at its widest, down to 5° to produce a piercing beam that can be trimmed with its ultra-fast stepless iris for really sharp output.

Certifications

Optical

200W OSRAM® white LED light engine

Beam angle: 5°- 42°

Color temperature: 6500K, CRI=80

Gobo size: 22.9mm outer, 20mm inner, 2.2mm max thickness

Control

Protocol: USITT DMX-512

25/30-channel DMX modes

Standalone, master/slave, auto mode

3/5-pin DMX in/out

5-button LCD control panel

Movement

Pan: 540° (8-16 bit)

Tilt: 270° (8-16 bit)

Power & Current

100-240VAC, 50-60 Hertz

Power consumption: 334W, 2.7A, PF: .99

Dimensions

25.5" x 11.4" x 16.4"

41.9

lbs

General Specs

Luminous Intensity:

122,613 Lux @ 3M (narrow), 2,472 Lux @ 3M (wide)

48,988 Lux @ 5M (narrow), 849 Lux @ 5M (wide)

11,200 Lux @ 10M (narrow), 245 Lux @ 10M (wide)

Connectors
Hang Time

/10

Density

/10

Rigging & Application
Tech Specs
Wireless Info
In the Box

Downloads & Manuals
