Enigma™ M4

SKU:

124270

1899.99

  • 4 universes via Art-Net, or 2 via DMX output
  • 20 playback keys x 20 pages, 15 faders x 40 pages
  • 7" TFT-LCD touch screen display
  • 4 universes via Art-Net, or 2 via DMX output
  • 20 playback keys x 20 pages, 15 faders x 40 pages
  • 7" TFT-LCD touch screen display

Options

No items found.

Our Flagship Lighting Console

Offering total control with 2,048 channels via Art-Net & 1,024 channels via DMX

Intuitive Design

7" touch screen + 20 playback keys x 20 pages, 15 faders x 40 pages

Tech Specs

Control Up To 4 Full Universes

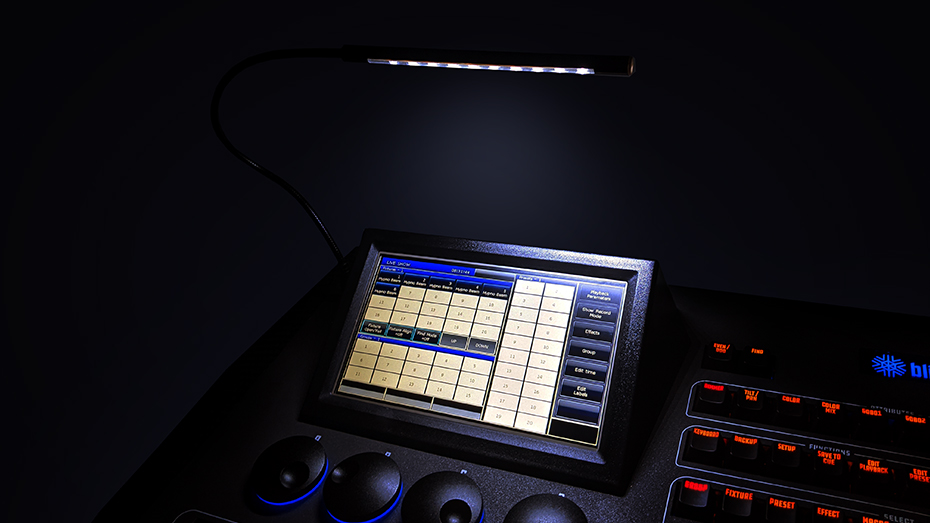

Enigma™ M4 allows real-time control of 4 universes via Art-Net, or 2 universes when using its optically isolated rear DMX outputs. It also offers a 7-inch TFT-LCD touch screen, and fully loaded keypad command section.

Intuitive Design

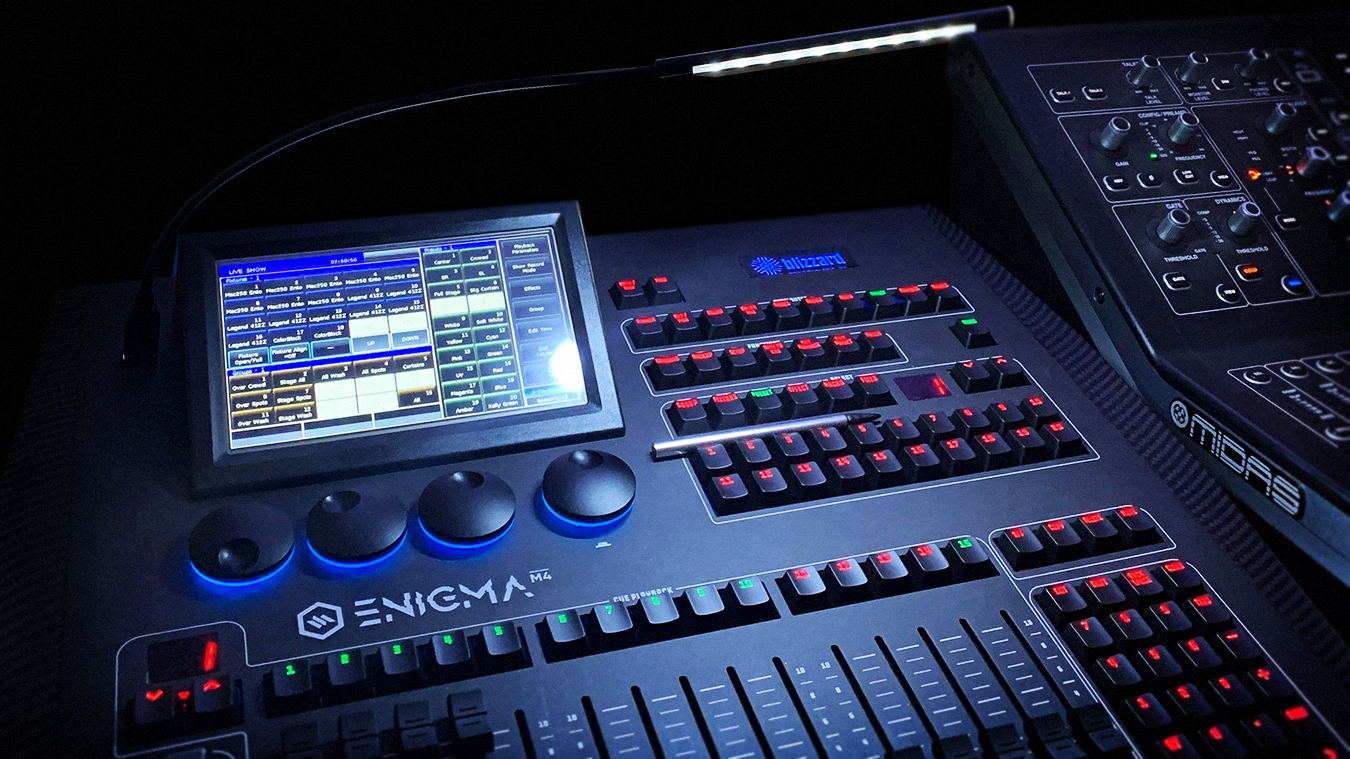

The control panel provides 3-color adjustable backlit buttons (red, green or yellow), 4 backlit encoders (blue), 15 linear faders (+40 pages), and 20 playback keys (+20 pages) which make programming a breeze.

Connectivity

Enigma™ M4 offers MIDI I/O to connect it alongside other consoles, or trigger effects using an external midi device. Audio triggering can be accomplished with its built-in internal mic, or input audio using its 1/4-inch mono audio jack.

Backup Capabilities

It is equipped with an internal HDD to backup and store show data, and has a USB port to connect other storage devices. Saved user libraries can be loaded and used in other Enigma™ M4 consoles.

Certifications

Optical
Control

Protocol: USITT DMX-512, Art-Net

Art-Net: 4 universe (2,048 channels)

DMX: 2x universe (1,024 channels)

Movement
Power & Current

100-240VAC, 50-60 Hz

Fuse: 1A

IEC power input connector

Dimensions

7" x 17.5" x 19"

22

lbs

General Specs

Road case dimensions: 24.4" x 23.7" x 10.3"

Connectors

1 x etherCON

2x 5-pin DMX Outputs (A/B)

5-pin MIDI In/Out + USB adapter cable

1 x USB (backup + updates)

1x 1/4" mono (audio in)

Hang Time

/10

Density

/10

Rigging & Application
Tech Specs
Wireless Info
In the Box

Downloads & Manuals
