Hypno™ Beam

SKU:

123891

629.99

  • 8° beam effects via 60W RGBW 4-in-1 LED
  • 2x LED rings with 60pcs RGB 3-in-1 SMD5050 LEDs
  • Independent beam and LED ring control
  • Compact and lightweight
  • Pan: 540/630°, Tilt: 200° (8-16 Bit Resolution)
  • Built-in auto/sound active programs
  • 0-100% linear LED dimmer
  • Pan/tilt invert
  • 1-25Hz strobe
  • User selectable 14/23-channel DMX modes
  • 3-pin DMX In/Out connections
  • powerCON® compatible AC power In/Out
  • 8° beam effects via 60W RGBW 4-in-1 LED
  • 2x LED rings with 60pcs RGB 3-in-1 SMD5050 LEDs
  • Independent beam and LED ring control
  • Compact and lightweight
  • Pan: 540/630°, Tilt: 200° (8-16 Bit Resolution)
  • Built-in auto/sound active programs
  • 0-100% linear LED dimmer
  • Pan/tilt invert
  • 1-25Hz strobe
  • User selectable 14/23-channel DMX modes
  • 3-pin DMX In/Out connections
  • powerCON® compatible AC power In/Out

Options

No items found.

Beams & Eye Candy

Sharp 8-degree RGBW beams and mind-blowing ring effects with color chases, macros, and strobe.

Easily Controlled

This fixture offers two user-selectable DMX modes (14/23-channels) and an easy-to-use 4-button LED control panel. The power connections are industry standard powerCON® compatible In/Out, and it is also equipped with 3-pin DMX In/Out jacks and a quarter-turn "Omega" quick connect type clamp bracket.

2 Year - Extendable Warranty
2 Year - Extendable Warranty

Tech Specs

Transfix the Audience

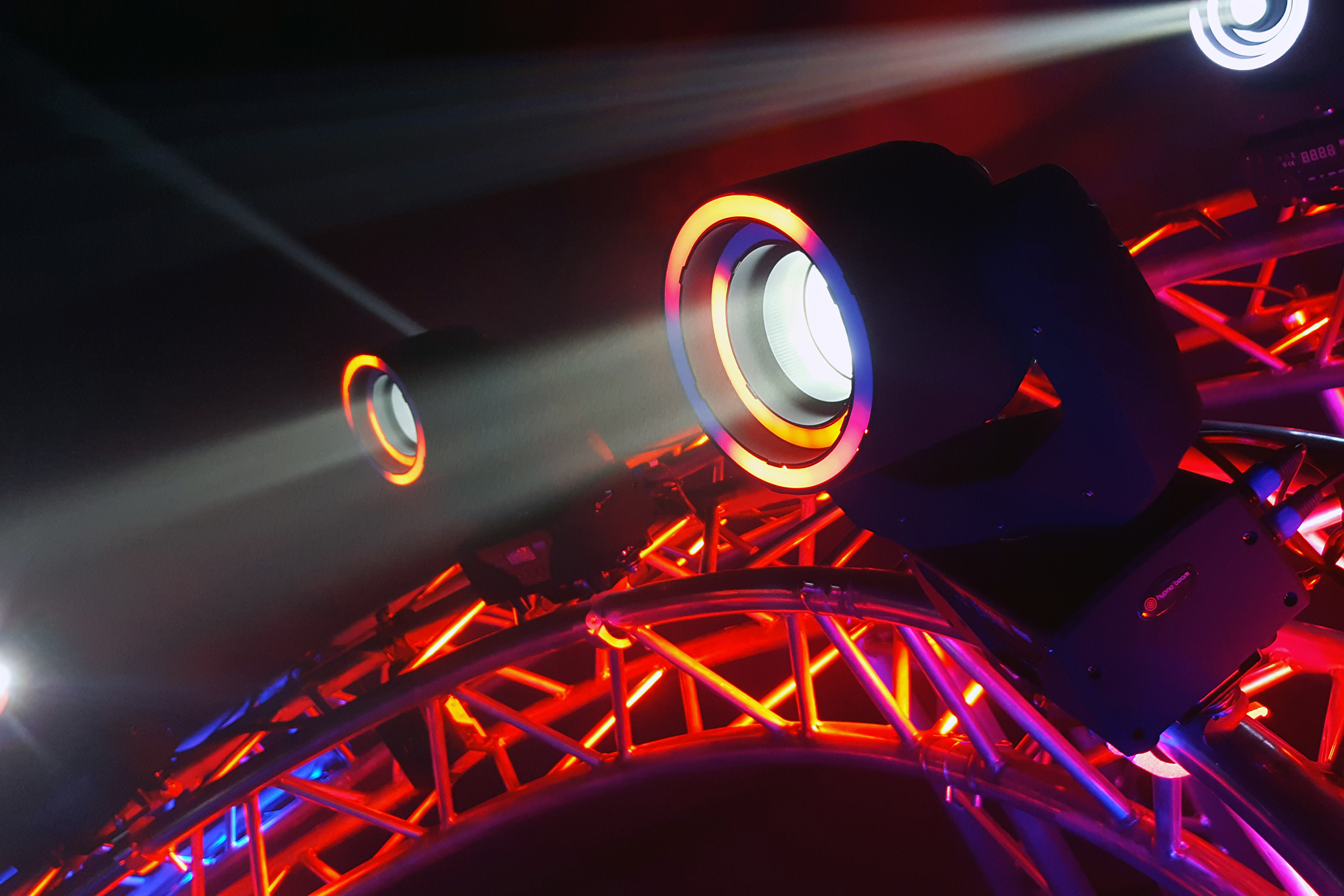

Hypno™ Beam comes loaded with a high output 60W RGBW LED in the center for stunning 8° moving beam effects with richly saturated RGBW mixed colors. The center LED is surrounded by 2x LED rings that can perform mesmerizing chase effects, single LED chases, full color changes, and strobe.

Easily Controlled

This fixture offers two user-selectable DMX modes (14/23-channels) and an easy-to-use 4-button LED control panel. The power connections are industry standard powerCON® compatible In/Out, and it is also equipped with 3-pin DMX In/Out jacks and a quarter-turn "Omega" quick connect type clamp bracket.

Certifications

Optical

1x 60W RGBW 4-in-1 LED

60x RGB 3-in-1 SMD5050 LEDs (rings)

Beam Angle: 8°

Control

Protocol: USITT DMX-512

14/23-channel DMX modes

Standalone, M/S, Sound Active, Color Preset

3-pin DMX in/out

4-button LCD control panel

Movement

Pan: 540/630° (8-16 bit)

Tilt: 200 degree (8-16 bit)

Power & Current

100-240VAC, 50-60 Hz

Power Consumption: 106W, .89A, PF: .98

Fuse: 2A, 250V

Dimensions

11.9" x 6.6" x 10.5"

11

lbs

General Specs

Luminous Intensity:

77,372 Lux @ 1M

15,330 Lux @ 2.5M

3,747 Lux @ 5M

Connectors
Hang Time

/10

Density

/10

Rigging & Application
Tech Specs
Wireless Info
In the Box

Downloads & Manuals
