This product has been discontinued.

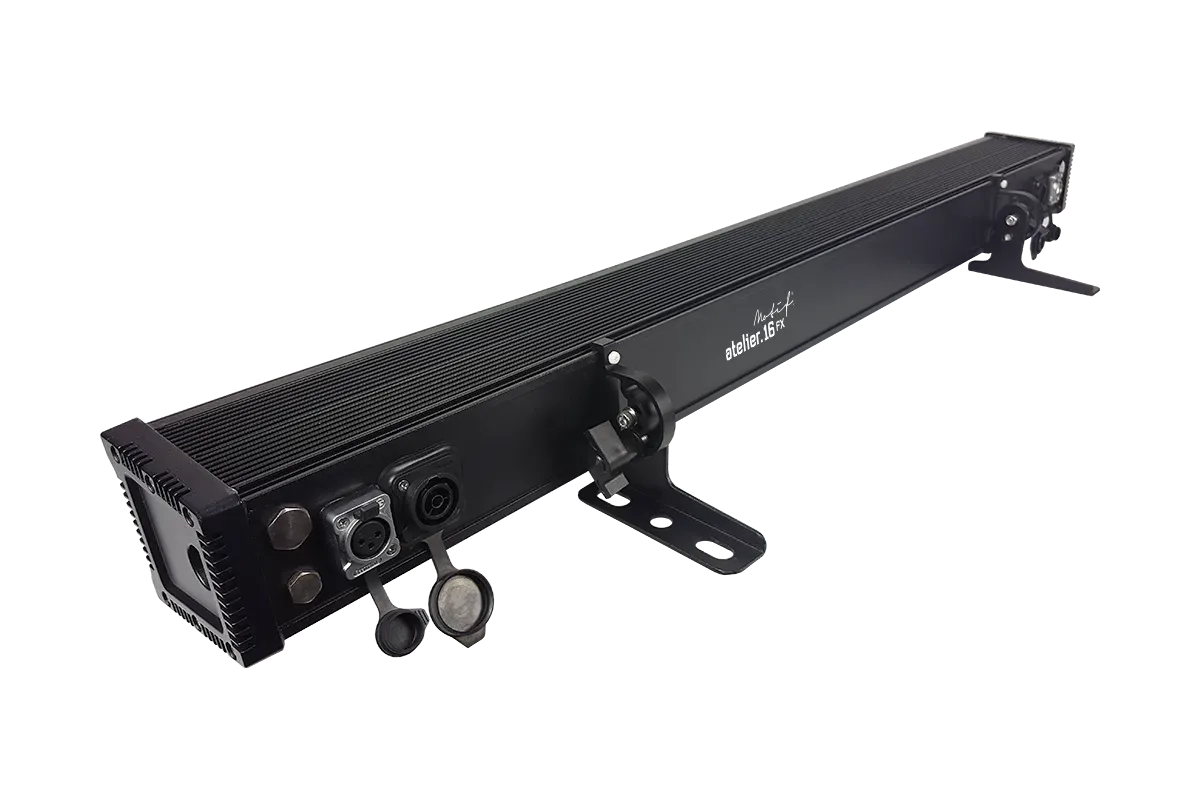

Motif™ Atelier 16FX

SKU:

124084

799.99

  • Color mixing via 16x 15W RGB+WW 4-in-1 LEDs
  • 10-40° asymmetrical beam spread
  • Wash effect, grouped pixels, and pixel mapping
  • Virtual color wheel effects
  • 33 auto programs, 10 custom colors, and 3 custom banks
  • PWM dimming: 1500 Hz (16666 grades)
  • Custom global color calibration settings
  • Variable electronic dimmer & multiple strobe effects
  • Sync custom settings between fixtures via DMX
  • Fixture ID addressing
  • LED control panel with touch sensitive buttons
  • Durable cast aluminum housing
  • Tempered glass lens and watertight internal gaskets
  • Efficient convection cooling for zero fan noise
  • Color mixing via 16x 15W RGB+WW 4-in-1 LEDs
  • 10-40° asymmetrical beam spread
  • Wash effect, grouped pixels, and pixel mapping
  • Virtual color wheel effects
  • 33 auto programs, 10 custom colors, and 3 custom banks
  • PWM dimming: 1500 Hz (16666 grades)
  • Custom global color calibration settings
  • Variable electronic dimmer & multiple strobe effects
  • Sync custom settings between fixtures via DMX
  • Fixture ID addressing
  • LED control panel with touch sensitive buttons
  • Durable cast aluminum housing
  • Tempered glass lens and watertight internal gaskets
  • Efficient convection cooling for zero fan noise

Options

No items found.

RGB+WW LEDs with Pixel Mapping

Great for vertical wash applications along walls, scrims, and other boundaries.

Durable & Outdoor-Rated

Built with a tempered glass lens, watertight internal gaskets and durable cast aluminum housing

Tech Specs

RGB+WW 4-in-1 LEDS

Rugged yet elegant... that's not just a description of the Blizzard Modern Interpretive Dance Troop. It also describes the Motif™ Atelier 16FX. Our IP65-rated 1-meter wash offers RGB+WW 4-in-1 LED color mixing and pixel effects via 16x 15W, individually controllable high output LEDs. It mimics tungsten-source lighting to produce soft, warm white tones or add more warmth to the blend of any RGB mixed color.

Certifications

Optical

16x 15W RGB+WW 4-in-1 LEDs, (2700k Warm White)

10-40° asymmetrical degree beam

Flicker-free LEDs

Luminous intensity: 4,358 Lux (404.9 fc) @ 2m | 1,021 Lux (94.9 fc) @ 4m

Control

Protocol: USITT DMX-512

4/5/10/16/24/40 or 72-channel DMX

Standalone, master/slave, color preset, auto mode

3-pin DMX input/output

4-button LED control menu display

Movement
Power & Current

100-264VAC, 47-63 Hz

214W, 1.8A, PF: .99

Dimensions

7.1" x 3.7" x 39.3"

15.4

lbs

General Specs
Connectors
Hang Time

/10

Density

/10

Rigging & Application
Tech Specs
Wireless Info
In the Box
